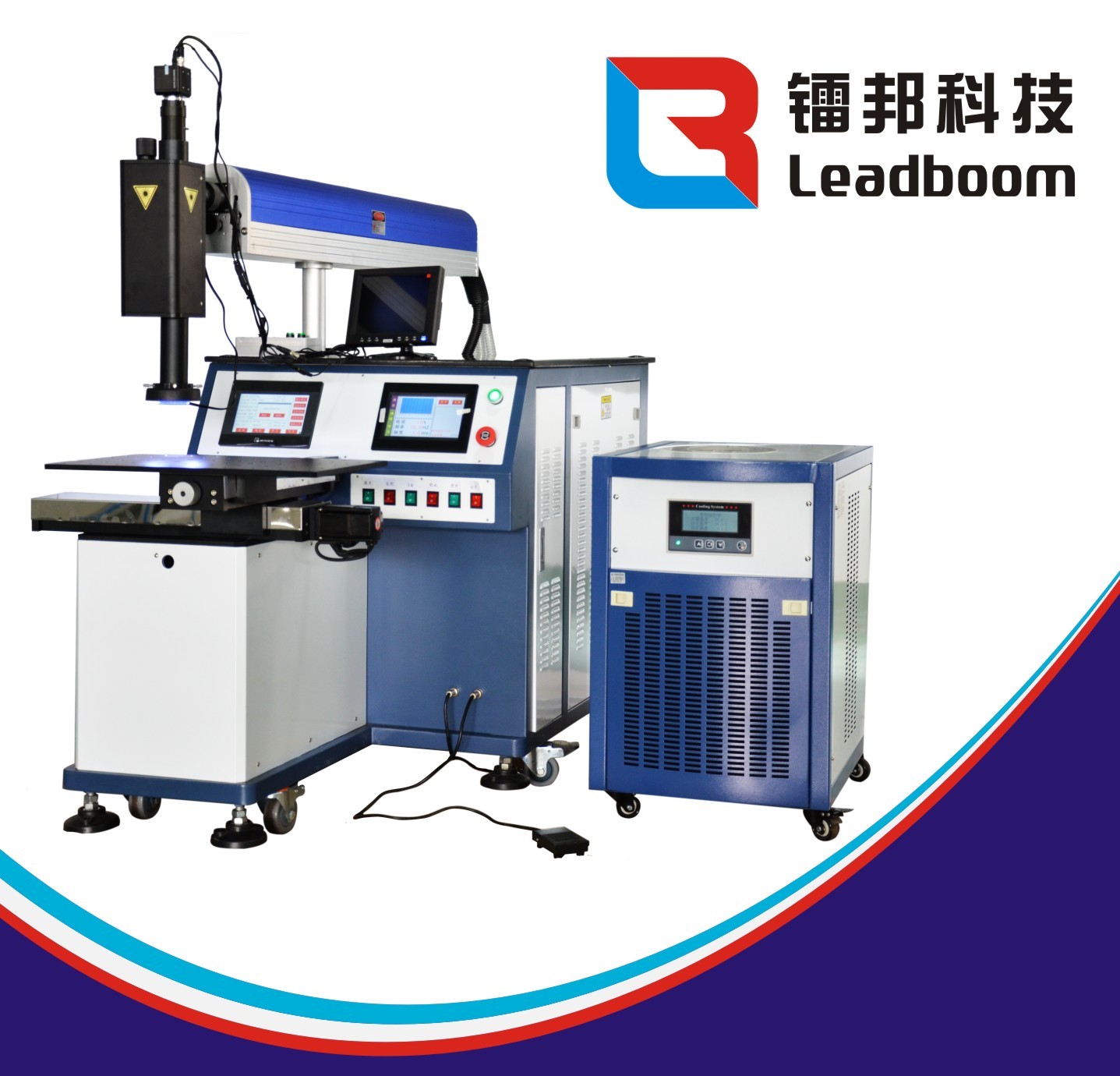

    CNC Controller Automatic Laser Welding Equipment With Stable Energy

    Ask Lasest Price
    Brand Name : Leadboom
    Model Number : LB-AW400
    Certification : CE FDA
    Price : USD8500-13000/set
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 100sets/month
    Delivery Time : 7-10 work days
    • Product Details
    • Company Profile

    CNC Controller Automatic Laser Welding Equipment With Stable Energy

    Technical Features


    1. High output power, stable energy, good beam mode and easy operation.
    2. The laser power feedback control system to ensure the stability of the laser energy output.
    3. Adopted UK imported ceramic condenser cavity, corrosion resistance, high temperature resistance, long service life.
    4. LCD interface, current, pulse width, frequency display function, dial to adjust the work table,more convenient for operation.
    5. Device is equipped with high-definition CCD and red double-positioning systems, higher positioning accuracy
    6. Executing code can be generated automatically by video teaching function, to complete the form processing simulation for complex graphics programming, easy to operate.
    7. XY platform design, sports flexible, able to complete a one-time combination welding curves, straight, single-point and other complex processes.
    8. Rotary table to complete multi-axis automatic welding. (Optional)

    Product Overview


    LB-AW automatic laser welding machine with high density laser power, it can do welding process on high melting point or two different materials metal, no need soldering flux, it is of non touching welding, the welding spot is strong and fixed, small heating affects area, the mechanical stress and deformation is very small. Machine with small volume, light weight, excellent design, stable performance and high efficiency, it has become the most efficient and energy saving laser precision processing equipment.

    Product application


    Laser welding can be used in titanium, nickel, tin, zinc, copper, aluminum, chromium, niobium, gold, silver and other metals and their alloys, and steel, kovar alloy, alloy welding between the same material.
    Widely used in mobile communications, electronics, clocks and watches, glasses, jewelry accessories, metal products, precision instruments, medical equipment, auto parts, process gifts, etc.


    Technical Parameters


    ModelLB- A W400
    Laser wavelength1064nm
    Rated laser output power400W
    Spot adjustment range0.1-3.0mm
    Pulse Width≤20ms
    Pulse frequency≤50Hz
    Aimed at positioningRed pointer. CCD
    Working table stroke300×200mm
    Positioning precision0.02mm
    Re-positioning precision±0.01mm
    Table load50KG
    Electricity demand380V/3 phase/50Hz/40A
    Host power consumption14KW
    Cooling methodWater-cooled
    Dimension1600mm×800mm×1500mm
