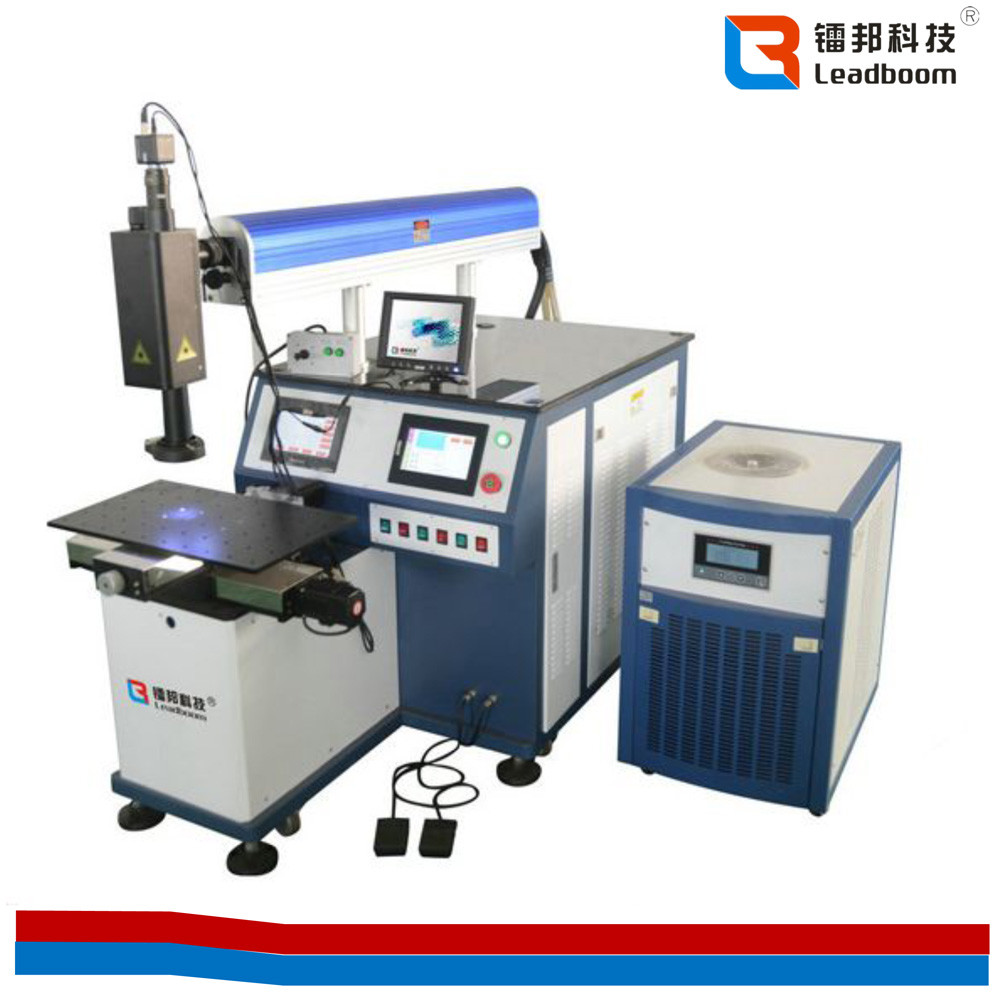

    Plastic Profile 200W Laser Welding Machine / Multi-Function Inverter Welding Machine Pipe

    Ask Lasest Price
    Brand Name : Leadboom
    Model Number : LB-W200
    Certification : CE FDA
    Price : USD8500-13000/Month
    Payment Terms : L/C, T/T, Western Union
    Delivery Time : 7-10 work days
    • Product Details
    • Company Profile

    Plastic Profile 200W Laser Welding Machine / Multi-Function Inverter Welding Machine Pipe

    Plastic Profile 200W Laser Welding Machine/Multi-function Inverter Welding Machine/Weld Machine Pipe


    Tachnical Parameters


    ModelLB- A W200
    Laser wavelength1064nm
    Rated laser output power200W
    Spot adjustment range0.1-3.0mm
    Pulse width≤20ms
    Pulse frequency≤50Hz
    Aimed at positioningRed pointer CCD
    Working table stroke300×200mm
    Positioning precision0.02mm
    Re-positioning precision±0.01mm
    Table load50kg
    Electricity demand380V/3 phase/50Hz/40A
    Host power consumption9KW
    Cooling methodwater-cooled
    Dimension1600x800x1500mm

    Product overview:


    LB-AW automatic laser welding machine with high density laser power, it can do welding process on high melting point or two different materials metal, no need soldering flux, it is of non touching welding, the welding spot is strong and fixed, small heating affects area, the mechanical stress and deformation is very small, machine with small volume, light weight, excellent design, stable performance and high efficiency, it has become the most efficient and energy saving laser precision processing equipment

    Technical features:


    1. High output power, stable energy, good beam mode and easy operation
    2. Laser power feedback control system to ensure the stability of the laser energy output
    3. Adopted UK imported ceramic condenser cavity, corrosion resistance, high temperature-resistance, long service life
    4. LCD interface, current, pulse width, frequency display function, dial to adjust the work table, more convenient for operation
    5. Device is equipped with high-definition CCD and red double-positioning systems, higher positioning accuracy

    Product application


    Laser welding can be used in titanium, nickel, tin, zinc, copper, aluminum, chromium, niobium, gold, silver and other metals and their alloys, and steel, kovar alloy, alloy welding between the same material
