    Metal Yag Laser Welder Jewelry Soldering Machine, 60W laser welder

    Ask Lasest Price
    Brand Name : Yag LAser
    Model Number : LB-TW
    Certification : CE
    Payment Terms : T/T
    Supply Ability : 1000 Set/Year
    Delivery Time : 7 Working day after payment
    • Product Details
    • Company Profile

    Metal Yag Laser Welder Jewelry Soldering Machine, 60W laser welder



    Laser Beam Welding Machine,Portable Laser Welding Machine,Laser

    Welding Machine For Sale


    Laser welding machine technical parameters

    ModelLB-TW80
    Laser sourceNd:YAG
    Maximun peak power4.5 KW
    Max output power200W
    Max.pulse energy1-80J
    Wave length1064nm
    Pulse length1-5ms
    Pulse frequency1-6Hz
    Spot diameter0.2mm-2.0mm
    Working distance90mm
    Program memory50 programs
    Flash lampsingle
    Laser cooling systeminternal water chiller
    Power supply220V(±10%), 50Hz, 25Amp
    Dimension840mm(L)×450mm(W)×500mm(H)
    Net weight60Kg
    Working requirementclean, no dust and vibrate, Temperature:13°C-28°C, Humidity: 5%-75%



    Production Application of laser welding machine

    Laser welding can be used to the welding between the same metal materials, such as Titanium, Nickel, Tin, Zinc, Copper, Aluminum, Chromium, Niobium, Gold, Silver and all kinds of Alloy.

    This machine is applied to a variety of industries, such as Mobile Communications, Electronics, Clocks and watches, Glasses, Jewelry Accessories, Metal products, Precision Instruments, Medical Equipment, and etc.



    Technical Advantages

    1.This machine is designed according to the ergonomics, is very sophisticated and attractive and has very stable performances! It is suitable for long time continuous work which wildly expands its application range.
    2.The energy of welding light spot is distributed evenly, is the best light spot needed by welding.
    3.Adopts the UK ceramic light-gathering cavity, which is anti-corrosive, heat-resistant and has a long service life.
    4.Its welding performance is very efficient and perfect, and the operation is very easy and convenient, it is very suitable for welding of arbitrary trajectory.
    5.Equipped with a high power laser driver and a very efficient cooling system, which satisfies mass production of 24 hours.
    6.Can be applied to both hand-operated and automated welding production.

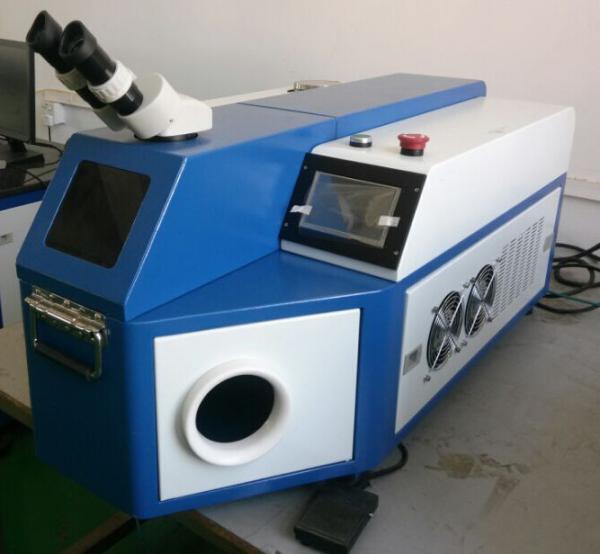

    Product display

    Metal Yag Laser Welder Jewelry Soldering Machine, 60W laser welder


    Metal Yag Laser Welder Jewelry Soldering Machine, 60W laser welder


    Terms and Conditions:
    1.FOB Shenzhen.
    2.Payment terms: T/T(30% deposit in advance & 70% balance should be paid before shipment).
    (The bank charge for buyer's account.)
    3.Delivery date: within 5 days upon receipt of your payment.
    4.Packaging with standard wooden case.

    561991667_341(1)


    After Service

    1.All of our machine will be fully-checked by our quality control department before the shipment. We guarantee all of our laser machines have a one-year warranty (quick-wear parts not included).
    2. Training 1-2 technician with free.
    3.Training details: operation principles, system and structure, safety and maintenance, software, the processing technique, and so on.
    4. Numerous feedback from our clients have proven that our laser machines are stable in performance with rare malfunction. However, we would like to handle it as follows once malfunction occurs:
    a.We guarantee that we will give you a clear reply within 24 hours.
    b. Customer service staff will assist and guide you to analyze the malfunction in order to locate the cause.
    c. If the malfunction is caused by improper operation on software and other soft faults, we will help solve the problem on line.
    d.We will offer plenty of online supports, just like detailed technical and installation instructions by email,video, telephone.
