    Metal Engraving Portable Laser Marking Machine USB Software CE Certification

    Ask Lasest Price
    Brand Name : Leadboom laser Co., Ltd
    Model Number : LB-MFA
    Certification : CE
    Supply Ability : 100 Set /Month
    Price : 3500-5000USD
    Delivery Time : 5 work day
    • Product Details
    • Company Profile

    Metal Engraving Portable Laser Marking Machine USB Software CE Certification

    Protable Desktope Laser Marking Machine Jewerly Rings Metal Stainless Steel Product 10w Blue Color


    1 .Machine Features:

    1.Taking use of integrated design of whole structure, equipped with automatic focusing system. The operation is very humanized.

    2.Adopting the imported original IPG fiber laser form Germany. Good beam quality. High photoelectric conversion efficiency. Long working life (100,000 hours).

    3.Its beam quality is much better than traditional solid laser marking machine. As the base module(TEM00) output, diameter of focal spot is less than 20um. Divergence angle is 1/4 of pumped semiconductor laser. Particularly applicable to fine and precision marking.

    4.Imported galvanometer scanning system which makes the optical model nice and beam quality is excellent. Also without any problem even marking fast.

    5.Long lifetime, small dimension, apply to work in the narrow environment.

    6.Processing speed is 3 or 5 times faster than traditional marker.

    Applied industry and materials:

    Materials: most of metal (including precious metals), engineering plastic, plating coating materials, spray material, plastic, rubber, epoxy resin, ceramic, and other materials.

    Industry: The phone keypad keys, translucent plastic keys, electronic components, integrated circuits(IC), electrical appliances, communication products, sanitary ware, tools, accessories, knives, glasses, clocks and watches, jewellery, automobile accessories, bags decorated clasps, cookers, stainless steel products and other industries.

    Technical Parameter:
    Laser generatorFiber Laser
    Laser power10W
    Standard marking area70mm×70mm
    Optional marking area35mm×35mm, 130mm×130mm
    Working tableManuel up and down aluminium alloy working table
    Marking speed0-7000mm/s
    Cooling systemAir cooling
    Control systemDigital offline control
    Galvo positioning accuracy±0.01mm
    Power supplyAC220V ± 5% / 50/60Hz
    Format supportAI, BMP, PLT, DXF, DST, etc.
    Optional

    20W fiber laser

    Rotary device for cylinder marking
    Auto focus for different thickness objects marking


    2.Feature of Food And Beverage Portable Laser Marking Machine :

    1)Low consumption,non-toxic,no pollution.

    2)Imported isolator for protection of the fiber laser generator to increase the stability and prolong the laser life.

    3)Laser beam quality is much better than the traditional laser marking machine.

    4)Free from maintance, long working life, small size, suitable for any working environment


    3. Food And Beverage Portable Laser Marking Machine Applicable Materials:

    Fiber Laser Marking Machine is suitable for all kind of metal, industrial plastic, electroplates, metal-coated materials, rubbers, ceramics and so on.


    4. Food And Beverage Portable Laser Marking Machine Applicable Industry:

    It widely used in food and beverage,pharmaceutical,tobacco,leather,packaging,building materials,lighting,accessories,cosmetics,electronics and so on.

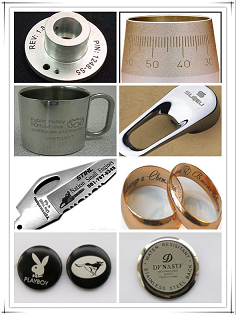

    5. Photos of Food And Beverage Portable Laser Marking Machine :

    Metal Engraving Portable Laser Marking Machine USB Software CE Certification


    Technical Advantages:

    (1) Using the third generation of optical fiber solid laser, the electro-optical onversion ecfficiency of pump light source can reach to 80% after fiber coupling. Higher beam quality, long use time, laser life can reach 80000 hours(Lamp pump YAG is around hundreds of hours, semiconductor is around 10000 hours).


    (2) Adopted imported high-speed scanning head, and combined with software makes engraving very fast, so the processing speed is 3 to 5 times quicker than the ordinary YAG and DP semiconductor.


    (3) Perfect beam quality achieved the highest and excellent marking effect. And it has great advantages of doing anti-white,matte,chromatic...on the stainless steel.


    (4) Air-cooling, no consumables, free maintenance, save power and energy(total power is 500W), low cost of latter usage, the annual electric savings would be around USD3000-5000.


    (5) High electrooptical efficiency: integrated electooptical efficiency reaches above 20%, greatly saved power consumption and operation cost.


    (6) Absolutely environmental marks without intermediate mediators involved in processing, completely in conformity with ROHS Standards.


    (7) Integrated modularization design, convenient maintenance, and the small volume can save more space.


    (8) Support JPG, PNG, BMP, PLT, DST, DXF, CDR, AI, DSB, GIF, MNG, TIF, TGA, PCX, JP2, JPC, PGX, RAS, PNM, SKA, RAW and other documents, and can form the serial number,production date, bar code and QR code automatically.


    (9)Optional rotary workable and other automated matching system.
