    Easy Operation Portable Laser Soldering Machine For Jewellery Long Service Time

    Ask Lasest Price
    Brand Name : Yag Laser
    Model Number : LB-TW
    Certification : CE
    Payment Terms : T/T, L/C, Western Union
    Supply Ability : 1000 Set/Year
    Delivery Time : 7 Working day after payment
    • Product Details
    • Company Profile

    Easy Operation Portable Laser Soldering Machine For Jewellery Long Service Time


    Portable Laser Welder Jewelry Soldering Machine Stainless Steel Gold Silver Brass


    Easy Operation Portable Laser Soldering Machine For Jewellery Long Service Time



    Machine Profile

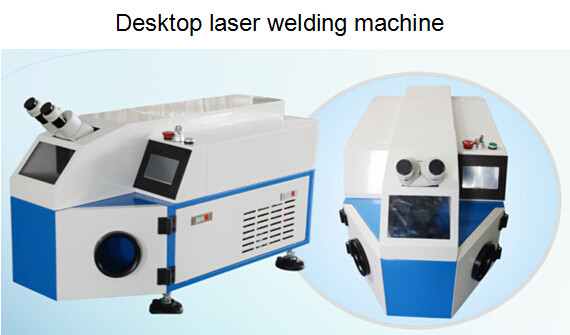

    LB-TW80 Laser Welding Machine is specially designed for jewelry industries and electronics, which imported advanced technology and adopts high quality accessories, the whole machine is more efficient, more durable, more convenient and environmental protection.


    Technical Advantages


    The whole machine with ergonomics design, more suitable for jewelry industry, nice appearance, stable performance, to meet the requirements for long time continuous work.


    Applicable for welding and repairing metal materials, including stainless steel, 18K gold, platinum,925 silver and other metals.


    Big internal space, convenient to put the tool and fixture.


    Switch for adjusting laser parameters installed in working area, easy to operate.


    Adjustable LED shadowless lamp, imported microscope, more clear to observe the welding position.


    Water-air cooling system internally installed, machine with small volume, low power consumption, no need industrial power, convenient to operate in small shop or factory.


    Small heating affects for welding, strong joints with nice and smooth surface, convenient operation, fast speed, high efficiency, more depth, less distortion, efficient environmental protection and pollution-free


    High-definition CCD monitor is more convenient to observe the welding position. (Optional)


    Technical Parameters


    ModelLB-TW80
    Laser source typeNd:YAG
    Laser wavelength1064nm
    laser class4
    Pulse output energy0.5-60J
    Average laser power80W
    Pulse width1-5ms
    Pulse frequency1-6Hz
    Spot diameters0.1-2.0mm
    Focusing systemMicroscope + automatic light-filtering protection system
    Cooling systemInternal water-air system
    Power220V / 50Hz
    Machine Size1050*560*650mm
    Weight60KG



    Production Application of laser welding machine


    Laser welding can be used to the welding between the same metal materials, such as Titanium, Nickel, Tin, Zinc, Copper, Aluminum, Chromium, Niobium, Gold, Silver and all kinds of Alloy.


    This machine is applied to a variety of industries, such as Mobile Communications, Electronics, Clocks and watches, Glasses, Jewelry Accessories, Metal products, Precision Instruments, Medical Equipment, and etc.

    Easy Operation Portable Laser Soldering Machine For Jewellery Long Service Time


    After Service


    1 All of our machine will be fully-checked by our quality control department before the shipment. We guarantee all of our laser machines have a one-year warranty (quick-wear parts not included).

    2 Training 1-2 technician with free.

    3 Training details: operation principles, system and structure, safety and maintenance, software, the processing technique, and so on.
    4 Numerous feedback from our clients have proven that our laser machines are stable in performance with rare malfunction. However, we would like to handle it as follows once malfunction occurs:
    a We guarantee that we will give you a clear reply within 24 hours.
    b Customer service staff will assist and guide you to analyze the malfunction in order to locate the cause.
    c If the malfunction is caused by improper operation on software and other soft faults, we will help solve the problem on line.

    d We will offer plenty of online supports, just like detailed technical and installation instructions by email,video, telephone.
