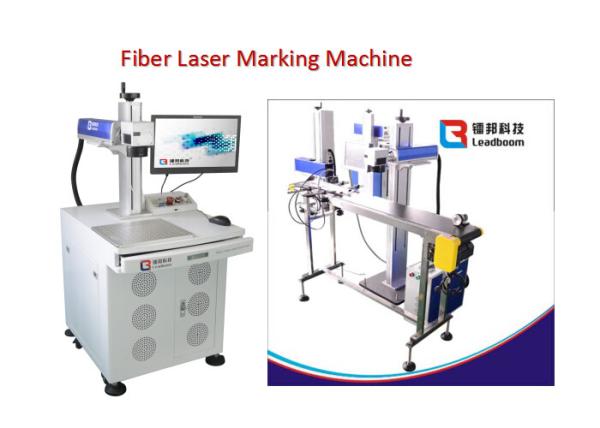

20W Metal Fiber Laser Marking Machine Stainless Steel Brass Copper
Gold Silver
Description
Fiber Laser Marking Machine adopted original fiber laser source and
high speed galvanometer scanning system with stable power,
excellent optical mode, beam with high quality, fast marking speed,
good effects and high efficiency, it can meet the demand for mass
production.
Usage of fiber laser marking machine
The machine employs the 3rd generation fiber laser and imported
high-speed galvanometer as its central devices.
It is widely used for metal’s surface marking, such as stainless, iron,
aluminium alloy, alumina, al-mg alloy, zinc alloy, copper,nickel
alloy, zinc alloy marking, etc.
Advantage of fiber laser marking machine
1 ) Short pulse-width, air-cooling, maintenance free, high
stability, good light beam quality, long using life by the 3rd
generation fiber Laser.
2 ) High processing accuracy, high marking speed and good stability
base on imported high-speed galvanometer.
3 ) Convenient Operation,convenient data processing with dedicated
laser marking software. Interface is simple and friendly, easy
operation.
4 ) Available support file format including
PLT,DXF,AI,SDT,BMP,JPG,JPEG,TGA,PNG,TIF,TIFF,etc.
5 ) Support one-dimensional code and two-dimensional code marking
such as Code39,EAN,PDF417,DATAMATRIX, etc.
6 ) Option function: marking-on-the-fling, rotary marking and XY 2D
platform.
Technical Parameters
| Specifications of fiber Laser Marking Machine(MF-20) |
| Model | MF-20-ISM | MF-20-IQ | MF-20-DM | MF-20-DQ |
| Laser type | Imported fiber laser; Adjustable pulse width. | Imported fiber laser; Pulse width can not be adjusted.
| Domestic fiber laser; Adjustable pulse width.
| Domestic fiber laser; Pulse width can not be adjusted.
|
| Laser power | 20W (30W, 50W optional) |
| Laser wavelength | 1064 nm |
| Laser frequency | 1.6 - 1000kHz | 20-200 kHz | 1-1000 kHz | 20-200 kHz |
| Peak Power Stability | 5% rms |
| Average Power Stability | 3% rms |
| Laser cooling method | Air Cooling |
| Marking Depth | 0.4 mm |
| Marking speed | 6000 mm/s |
| Marking area | Stand marking size 100 mm × 100 mm; Optional marking size 50 mm × 50 mm~200 mm × 200 mm. |
| Minimum line width | 0.02 mm |
| Minimum character | 0.2 mm |
| Repetitive of positioning accuracy | 0.003 mm |
| Ambient temperature | 10℃-40℃ |
| Ambient humidity | 10%-85%RH, Non-Condensing |
| Power Supply | 220V/50Hz |
| Power of machine | 600W |
| Total weight | 160kg |
| Software language | Chinese,English,Japanese,Korean |
| Font Format | Support true type including JSF, SHX,DMF |
| Support bar code format | One-Dimension code:CODE39, CODE93,CODE128,ENA standard, EAN-128; Two-Dimension code: DataMatrix, QRcode, PDF417, micro QRcode |
| Support file format | BMP,JPG,PNG,TIF,GIF,TGA,DXF,AI,AST,PLT |
| Special custom functions | Rotating marking function(marking while rotating); Flying marking function(marking while conveyor belt moving); Add X/Y axes motion platform; Automatic loading and unloading. |
Application Fields
Industry: plastic keypad, components of digital products,
electronic components, electrical appliances, jewellery, precision
machinery, hardware accessories, glasses, clocks and watches,
vehicle and motor accessories, sanitary ware, communication
products, medical devices, integrated circuit(IC), building
material, pipe materials, more suitable for the marks of high
demand of accuracy, speed and depth.
Materials: metal and various nonmetal materials, high hardness
alloy steel, oxide, electroplating and vacuum plating, epoxy resin,
printing ink, ABS and other engineering plastic.
