    Stable Power Synrad CO2 Laser Engraving Machine 30W For Leather Clothing

    Ask Lasest Price
    Brand Name : USA Synrad Laser
    Model Number : LB-MC30
    Certification : CE
    Payment Terms : T/T, L/C, Western Union
    Supply Ability : 30 Sets Per Month
    Delivery Time : 7 working days
    • Product Details
    • Company Profile

    Stable Power Synrad CO2 Laser Engraving Machine 30W For Leather Clothing


    Shoes Leather Clothing Laser Engraving Machine Trademark Processing Embroidery 30W


    Machine Profile


    LB-MC series CO2 laser engraving machine adopted with advanced CO2 RF laser device and high stale laser power, and equipped with high quality optical elements, automatic control system driver and high-speed scanning galvanometer system.


    Technical Advantage


    1 Adopted USA imported RF metal laser device, high performance, long service life, the cavity can always be used.

    2 High accuracy and speed of engraving , the performance is extremely stable, support long time continuous work.

    3 Excellent laser power utilization rate, and can be applied to a variety of nonmetal products in engraving and cutting.

    4 Without consumables cost, clear marking, not easy to wear, high efficiency of engraving and cutting, environmental protection,energy saving.

    5 DXF ,PLT, BMP ,AI ,JPG and other documents supported in the software, and can form the serial number, production date, bar code and planar bar code automatically . Support online flying, rotating marking, and support XY platform with large area partitioning marking.


    Technical Parameters


    Model

    LB-MC10LB-MC30LB-MC60

    Laser Power

    0~10w0~30w0~60w

    Laser wavelength

    10640nm10640nm10640nm

    Pulse frequency

    ≤50kHZ≤50kHZ≤50kHZ

    Working area

    70X70mm,110×110mm (optional)

    110X110mm,140×140mm (optional)

    175X175mm,250×250mm (optional)

    Marking speed

    ≤7000mm/s≤7000mm/s≤7000mm/s

    minimum line width

    0.04mm0.05mm0.06mm

    Repeated precision

    ±0.003mm±0.003mm±0.003mm

    Cooling system

    air-cooled

    air-cooled

    air-cooled

    Power supply

    AC220V/50HZAC220V/50HZAC220V/50HZ

    power consumption

    ≤0.5KW≤0.8KW≤2KW

    Dimension

    820mm×620mm×1360mm860mm×620mm×1360mm1200mm×620mm×1500mm

    Standard Accessories (CO2 Laser Engraving Machine)


    A set of USA SYNRAD Laser Source

    A set of Galvo tech Scanner

    A semiconductor module
    A set of high-speed vibrating mirrors
    A set of marking control system (Original version)
    An industrial computer
    A marking work table
    A red laser pointer
    A pedal switch
    A set of marking software


    Application Field

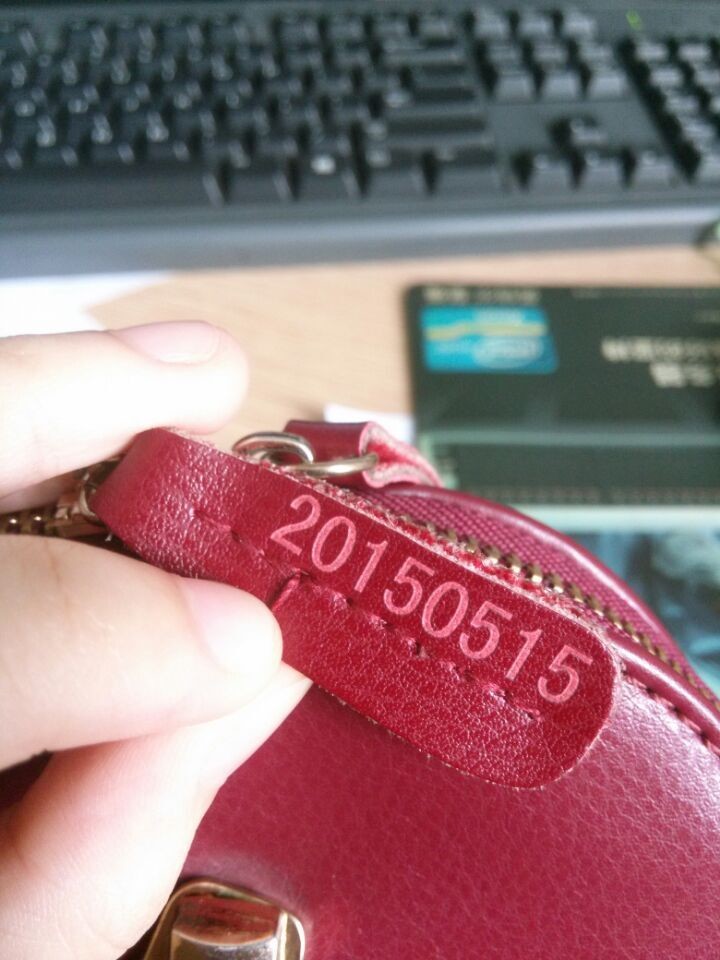

    A. Materials: wood products, paper, cloth, leather, organic glass, acrylic, epoxy resin, unsaturated polyester resin and other non metal materials.


    B. Industry: craft gift,furniture, leather and cloth, advertising signs, model products, food packaging,electronic components, pharmaceutical packaging, printing plate, nameplate, case and so on.
