    Air - Cooling Laser Engraver Machine 8000 mm / s Metal Laser Marking Machine

    Ask Lasest Price
    Brand Name : Raycus Laser Source
    Model Number : LB-MF20
    Certification : CE
    Payment Terms : T/T, L/C, Western Union
    Supply Ability : 25 sets per month
    Delivery Time : 7 working days
    • Product Details
    • Company Profile

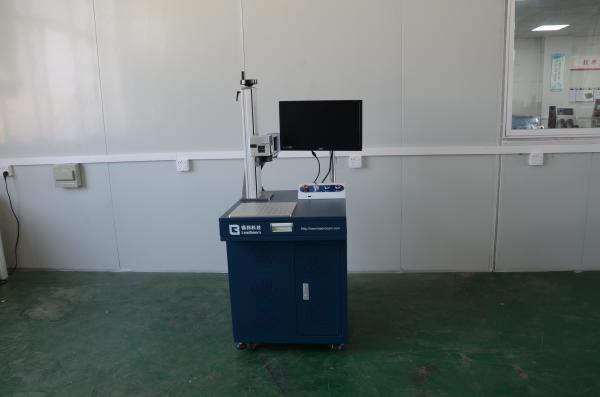

    Air - Cooling Laser Engraver Machine 8000 mm / s Metal Laser Marking Machine


    Laser Engraving Machine


    Description


    Fiber laser marking machine is a new generation laser marking system made with the newest laser technique in the world. It is designed with fiber laser maker as a laser source, and thru high-speed vibration-mirror scan system to actualize marking function, the fiber laser making machine have high conversion efficiency of electric-light, mainly used to the field which requests high quality to deepness, smoothness, and precision, such as horologe, communication products, jewelry, images marking, etc.


    Air - Cooling Laser Engraver Machine 8000 mm / s Metal Laser Marking Machine


    Technical Parameters


    Output Power:10w / 20w
    Wavelength1064nm
    Beam qualityM2 < 2
    Cooling systemAir cooling
    Marking scope110mm×110mm
    Repeat accuracy±0.002mm
    Marking DepthMax. 1mm ( Depending on materials)
    Linear speed≤7000mm/s
    Min. line width

    0.01mm

    Min. character size0.2mm
    Input power:<1.2 KW
    Electrical source:220V/50Hz/5A
    Dimensions :(L*W*H)610x810x1320mm
    PackagesSeaworthy plywood case
    Weight

    66kgs


    Standard Accessories (Fiber Laser Marking Machine)
    (1) A set of 20W / 30W Fiber Laser Device (Raycus) or IPG Fiber Laser
    (2) A set of Scanning System (Galvotech)
    (3) A set of high-speed Scan Lens (Singapore Ronar-Smith)
    (4) 110mm x110mm Fiber Focus Lens (Singapore Ronar-Smith)
    (5) A set of Laser Beam Expanders (Singapore Ronar-Smith)
    (6) Motion control card
    (7) A set of marking control system
    (8) A set of marking software
    (9) An industrial computer
    (10) A red laser pointer
    (11) A pedal switch
    (12) Working table(300mmX300mm)
    (13) Laser power supply

    (14)Operation Manual Training Video


    Machine Features


    Excellent beam quality: This series of fiber laser marking machines are much better than the traditional marking machine, condensation diameter is less than 20um, divergence angle is 1/4 of the semiconductor pumping source laser, used inaccurate marking

    Low use-cost: the high turnover ratio between electricity and laser, the whole machine power consumption is less than 500W, which is 1/10 of light pumping source laser

    Maintenance-free Operation: There is no need for any maintenance for laser, or to adjust /clean the lens

    Fast marking speed, 2-3 times faster than the traditional marking machine

    Long working life: using fiber laser as a pumping source, the working hours can reach as long as 100,000 hours

    Rotary worktable system is optional, thus, accomplish marking on the cambered surface.

    Air-cooling, no water chiller like YAG laser marker, easy transportation, also have the portable type.

    This machine cannot be affected by a bad environment and the temperature change.

    Small size and lightweight


    Application Fields


    A. Materials: metal and various nonmetal materials, high hardness alloy steel, oxide, electroplating and vacuum plating, epoxy resin, printing ink, ABS and other engineering plastic.


    B. Industry: plastic keypad, components of digital products, electronic components, electrical appliances, jewelry, precision machinery, hardware accessories, glasses, clocks and watches, vehicle and motor accessories, sanitary ware, communication products, medical devices, integrated circuit(IC), building material, pipe materials, more suitable for the marks of high demand of accuracy, speed and depth.
