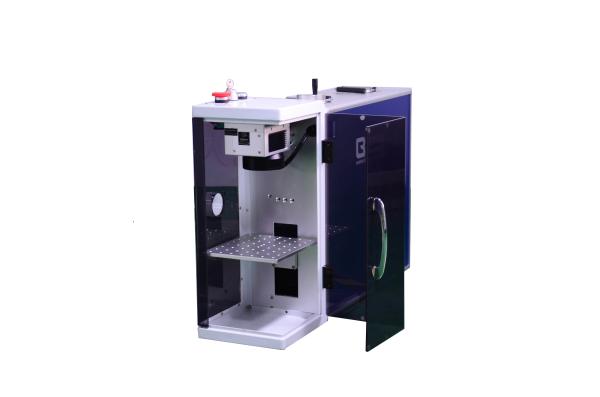

    Metal Dog Tag Laser Marking Machine 20W , Stainless Steel Portable Laser Marker

    Ask Lasest Price
    Brand Name : JPT Laser source
    Model Number : LB-MFA20
    Certification : CE
    Payment Terms : T/T, L/C, Western Union
    Supply Ability : 30 sets per month
    Delivery Time : 7 working days
    • Product Details
    • Company Profile

    Metal Dog Tag Laser Marking Machine 20W , Stainless Steel Portable Laser Marker


    Metal Dog Tag Laser Marking Machine 20W , Stainless Steel Marker Machine within 0.5mm


    1 Machine main Features

    1 . 1 . Marking high precision spare parts, such as Gold, Silver, Jewelry, Electronic spare parts etc.

    1 . 2 . High speed marking speed and perfect marking effects.

    1 . 3 . Working time: 100,000 hours , without any consumptive materials.

    1 . 4 . CE certificates

    1 . 5 . Compact designing

    1 . 6 . Min marking letter: 0.15mm


    2 Machine applications & Materials

    This type laser marker suitable for Gold, Silver, Diamond, Sanitary Equipments, Food Packing, Tobacco Label, Beer label, Drink Label,
    Medicine Packing, Medical Equipments, Glasses and Clock, Auto Parts, Plastic& Paper Materials, The Electron, Hardware which with high request for depth, smooth, accuracy such as horologe,
    Mould, bitmap marking etc.

    Laser Power: 10W, 20W, 30W, 50W


    PS: (10w and 20W are recommended for normal markings,30w and 50w for deep marking.)


    Technical Parameters


    No.NameParameter
    1Laser powerPulsed(10W,20W,30W,50W,)
    2Laser wavelength1064nm
    3Laser SourceFully sealed fiber laser source
    4Marking Area110mm*110mm-300mm*300mm (optional)
    5Min. Line Width0.03mm
    6Min. Character Size≤0.5mm
    7Marking Speed≤7000mm/s
    8Pulse Width≤60us
    9Repetition Positioning Accuracy10urad
    10ModeSingle Mode
    11Positioning WayRed Light
    12Power SupplySingle Phase AC 220V, 50/60HZ

    Application Fields


    A Materials: metal and various nonmetal materials, high hardness alloy steel, oxide, electroplating and vacuum plating, epoxy resin, printing ink, ABS and other engineering plastic.


    B Industry: plastic keypad, components of digital products, electronic components, electrical appliances, jewelry, precision machinery, hardware accessories, glasses, clocks and watches, vehicle and motor accessories, sanitary ware, communication products, medical devices, integrated circuit(IC), building material, pipe materials, more suitable for the marks of high demand of accuracy, speed and depth.
