    Portable Jewelry Soldering Machine Laser Welding Machine for Ring , Watches , Glass

    Ask Lasest Price
    Brand Name : Leadboom
    Model Number : LB-TW80
    Certification : CE
    Payment Terms : T/T, L/C, Western Union
    Supply Ability : 1000 Set/Year
    Delivery Time : 7 Working day after payment
    • Product Details
    • Company Profile

    Portable Jewelry Soldering Machine Laser Welding Machine for Ring , Watches , Glass


    Portable Jewelry Laser Welding Machine for Ring, Watches, Glass


    Machine Profile

    LB-TW80 Laser Welding Machine is specially designed for jewelry industries and electronics, which imported advanced technology and adopts high quality accessories, the whole machine is more efficient, more durable, more convenient and environmental protection.


    Technical Parameters


    ModelLB-TW80
    Laser source typeNd:YAG
    Laser wavelength1064nm
    laser class4
    Pulse output energy0.5-60J
    Average laser power80W
    Pulse width1-5ms
    Pulse frequency1-6Hz
    Spot diameters0.1-2.0mm
    Focusing systemMicroscope + automatic light-filtering protection system
    Cooling systemInternal water-air system
    Power220V / 50Hz
    Machine Size1050*560*650mm
    Weight60KG

    Technical Advantages


    The whole machine with ergonomics design, more suitable for jewelry industry, nice appearance, stable performance, to meet the requirements for long time continuous work.


    Applicable for welding and repairing metal materials, including stainless steel, 18K gold, platinum,925 silver and other metals.


    Big internal space, convenient to put the tool and fixture.


    Switch for adjusting laser parameters installed in working area, easy to operate.


    Adjustable LED shadowless lamp, imported microscope, more clear to observe the welding position.


    Water-air cooling system internally installed, machine with small volume, low power consumption, no need industrial power, convenient to operate in small shop or factory.


    Small heating affects for welding, strong joints with nice and smooth surface, convenient operation, fast speed, high efficiency, more depth, less distortion, efficient environmental protection and pollution-free


    High-definition CCD monitor is more convenient to observe the welding position. (Optional)


    Production Application of laser welding machine


    Laser welding can be used to the welding between the same metal materials, such as Titanium, Nickel, Tin, Zinc, Copper, Aluminum, Chromium, Niobium, Gold, Silver and all kinds of Alloy.


    This machine is applied to a variety of industries, such as Mobile Communications, Electronics, Clocks and watches, Glasses, Jewelry Accessories, Metal products, Precision Instruments, Medical Equipment, and etc.


    Company Information

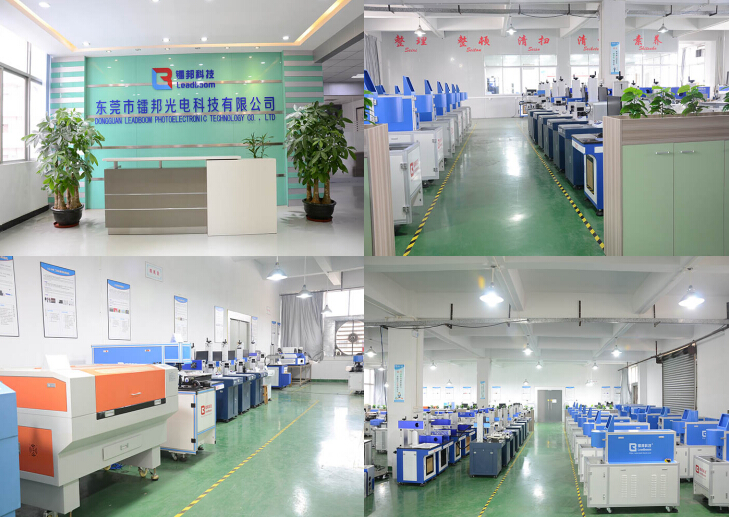

    Leadboom Company Information
