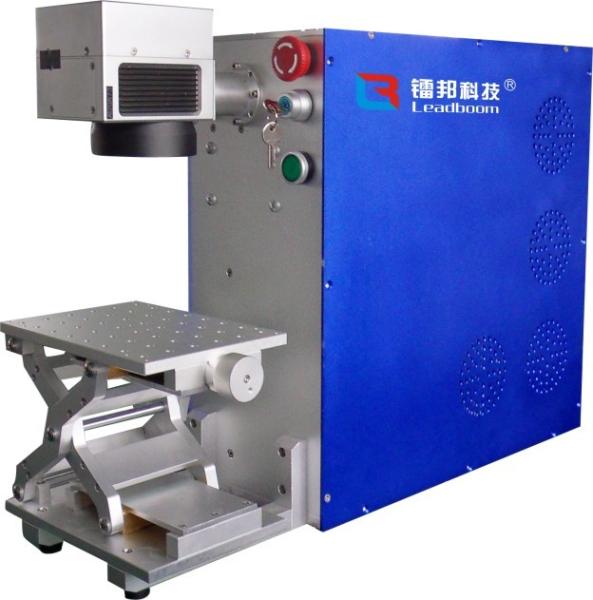

    Plastic Button 10w Fiber laser Marking Equipment, handle fiber laser marking machine

    Ask Lasest Price
    Brand Name : IPG/Raycus laser source
    Model Number : LB-MF20
    Certification : CE
    Supply Ability : 100 Set /Month
    Delivery Time : 7 Working day
    Price : USD2000-6000
    Payment Terms : Western Union, T/T
    • Product Details
    • Company Profile

    Plastic Button 10w Fiber laser Marking Equipment, handle fiber laser marking machine


    Plastic Button 10w Fiber laser Marking Equipment, handle fiber laser marking machine



    Product Parameters

    Type

    LB-MF20

    Laser Power

    20W

    Laser Wavelength

    1064nm

    Beam Quality

    M2≤1.3

    Repetition Frequency

    20KHz~100KHz
    Working Area50x50mm~110x110mm

    Marking Speed

    ≤7000mm/s

    Min.Characters

    0.15mm

    Min. Line Width

    0.01mm

    Repeated Precision

    ±0.001mm

    Cooling System

    Air-cooling

    Power Supply

    220V / 50Hz

    Power Consumption

    0.8KW

    Overall Dimensions

    700x245x460mm

    Application Filed

    Materials: metal and all kinds of nonmetal materials, high hardness alloy steel, oxide, electroplating vacuum plating, epoxy resin, printing ink, ABS, and other engineering plastic.


    Industry: Plastic keypad keys, components of digital product, electronic components, electrical appliances, jewelry, precision machinery, hardware accessories, glasses clocks and watches, qimo accessories, sanitary ware, communication products, medical devices, integrated circuit (IC), building materials, pipe materials, more suitable for high demand of .accuracy, speed and depth to the products.



    Technical Advantages:


    (1) Using the third generation of optical fiber solid laser, the electro-optical onversion ecfficiency of pump light source can reach to 80% after fiber coupling. Higher beam quality, long use time, laser life can reach 80000 hours(Lamp pump YAG is around hundreds of hours, the semiconductor is around 10000 hours).


    (2) Absolutely environmental marks without intermediate mediators involved in processing, completely in conformity with ROHS Standards.


    (3) Perfect beam quality achieved the highest and excellent marking effect. And it has great advantages of doing anti-white, matte,chromatic...on the stainless steel.


    (4) Adopted imported high-speed scanning head, and combined with the software makes engraving very fast, so the processing speed is 3 to 5 times quicker than the ordinary YAG and DP semiconductor.


    (5) Air-cooling, no consumables, free maintenance, save power and energy(total power is 500W), low cost of latter usage, the annual electric savings would be around USD3000-5000.


    (6) High electrooptical efficiency: integrated electooptical efficiency reaches above 20%, greatly saved power consumption and operation cost.


    (7) Integrated modularization design, convenient maintenance, and small volume can save more space.


    (8) Support JPG, PNG, BMP, PLT, DST, DXF, CDR, AI, DSB, GIF, MNG, TIF, TGA, PCX, JP2, JPC, PGX, RAS, PNM, SKA, RAW and other documents, and can form the serial number,production date, bar code and QR code automatically.


    (9) Optional rotary workable and other automated matching system.
